Key Features:
• Support 4 CH 8MP/6MP/5MP/4MP/3MP/ 1080P/ 1280×1024/ 960P/720P/960H/ DI/CIF IP video input H .265/H .264

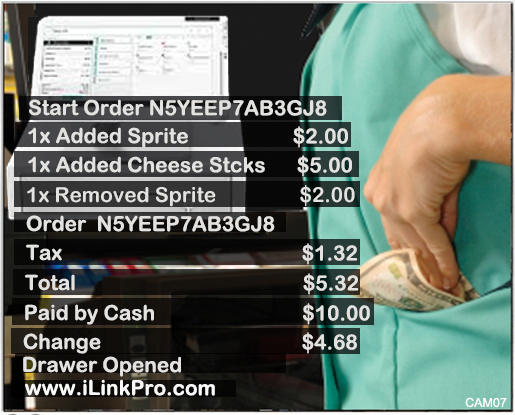

• Support POS information overlay on live view, playback, and search
• Intuitive and user-friendly Graphic User Interface (GUI), Windows-style operation by mouse
• Multi-mode recording: manual / timer/motion/sensor/ POS / AI recording Playback: 4 simultaneous playbacks
• Search: time slice, time, event, tag, smart search
• Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion tripwire video exception, etc.
• Express and flexible backup via USB, network, and so on
• Pentaplex: preview, record, playback, backup, and remote access
• DHCP, DDNS, PoE network protocol
• Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration
• 4 PoE network ports, support IPC direct connection to NVR; support PoE power supply
• Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log view, and device status view
• 1080P output, true high-resolution display
• Support NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smartphones with iOS and Android OS
Image Resolution Comparison

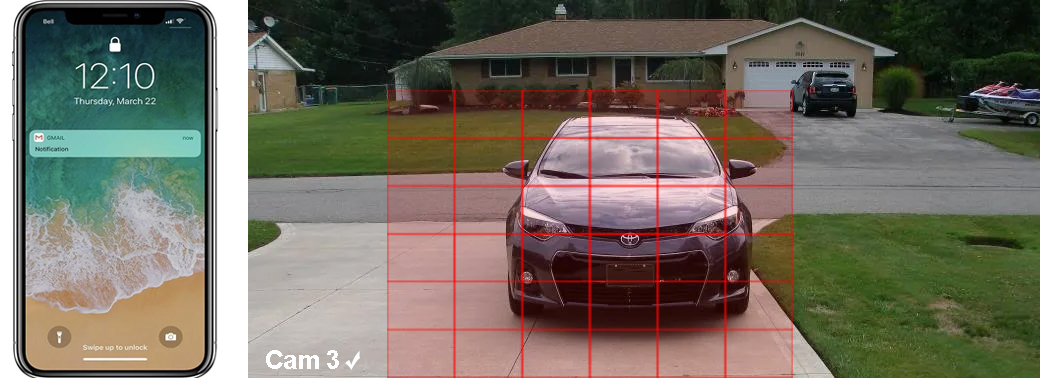

Configure your NVR to send immediate email notifications upon detecting motion
Access your system remotely from anywhere
Product Specifications:
|
Model |
CPV-SNVR8P-4K |
|
System |
|
Operating system |
Embedded Linux OS |
|
Video |
|
Network Input |
8CH IPC input |
|
Network Input Resolution |
8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 1280X1024/ 960P/ 720P/ 960H/ D1/ CIF |
|
Output |
HDMI×1: 3840×2160 / 1920×1080 / 1280×1024 / 1024×768 VGA: 1920×1080 / 1280×1024 / 1024×768 |
|
Compression |
Standard: H.265 / H.264 |
|
Audio |
|
Network Input |
8 CH IPC audio input |
|
2-way Audio |
RCA x 1 |
|
Local Output |
RCA x 1 |
|
Compression |
G.711 (U/A) |
|
Record |
|
Record stream |
Dual stream recording |
|
Resolution |
8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 1280X1024/ 960P/ 720P/ 960H/ D1/ CIF |
|
Frame Rate |
NTSC: 30fps; PAL: 25fps |
|
Playback |
|
Simultaneous Playback |
Max: 8 CH |
|
Search |
Time slice/ time/ event/ tag/ smart search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refer to different record events. |
|
Function |
Play, Pause, FF, FB, digital zoom, etc. |
|
Decoding Capability |
|
Live View/ Playback |
1CH 8MP; 4CH 1080P |
|
Alarm |
|
Mode |
manual, sensor, motion, exception, smart events |
|
Input |
Supports IPC alarm input |
|
Output |
Supports IPC alarm output |
|
Triggering |
Record, Snap, Preset, e-mail, etc. |
|
Network |
|
Interface |
RJ45 x 1 (10/100/1000Mbps) |
|
Protocol |
TCP/ IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NPT, HTTP, SMTP, HTTPs, 802.1x, ONVIF |
|
Incoming/Ougoing Bandwidth |
80/80 (Mbps) |
|
Client Connection |
Max. 10 Users' access |
|
Mobile Device |
|
Operating System |
iOS, Android |
|
Storage |
|
HDD Interface |
SATA 3.0 x 1, max 8T |
|
Backup |
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
|
Port |
|
USB |
USB 2.0 x 2 |
|
Remote Controller |
Yes |
|
PoE |
|
PoE Ports |
100M RJ45 x 8 |
|
Standards |
IEEE802.3AF |
|
Output Power |
≤ 96W |
|
Others |
|
Power Supply |
DC 48V/2.5A |
|
Consumption |
≤ 10W (without HDD) |
|
Dimensions (mm) |
300 x 249 x 45 (WxDxH) |
|
Working Environment |
-10 ~ 50 °C, 10% ~ 90% humidity |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
