• Support 8CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/DI/CIF IP video input • Adopt standard H.265 and H.264 high-profile compression format to get high-quality video at a much lower bit rate • Intuitive and user-friendly Graphic User Interface (GUI), Windows-style operation by mouse • Multi-mode recording: manual / timed / motion/sensor / POS / AI recording • Playback: 8CH simultaneous playback • Search: time slice, time, event, tag, smart search • Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc. • Support POS information overlay on live view, playback, and search - optional • Express and flexible backup via USB, network, and so on • Pentaplex: preview, record, playback, backup, and remote access • DHCP, DDNS, PoE network protocol • Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration • 4/8 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported • Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with a mobile device • Multi-user online simultaneously • Authorization management, log view, and device status view • 4K output, true high-resolution display • Support NAT function and QRCode scanning by mobile phones • Powerful mobile surveillance by smartphones with iOS and Android OS
Model

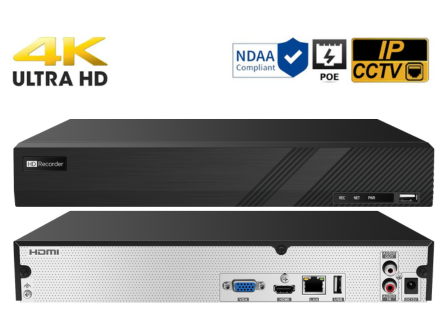

CPV-SNVR8-4K
System
OS
Embedded Linux
Video
Network Input
Network Input Resolution
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/
960H/D1/CIF
Output
HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/
1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
Screen Display Mode
1/4 /6/8/9
Compression
H.265S / H.265+ / H.265 / H.264
Audio
8 CH IPC audio input
Local Input
RCA × 1 (for two-way audio)
Local Output
RCA × 1
G.711(U/A)
Record
Resolution
Frame Rate
NTSC:30fps; PAL:25fps
Playback
Simultaneous Playback
Search
Time slice / time / event / tag search
Smart Search
Highlighted color to display the camera record in a certain
period of time, different colors refers to different record events
Function
Play, pause , FF, FB , digital zoom , etc .
Decoding Capability
Live View/ Playback
Alarm
Mode
Manual , sensor, motion , exception , smart events
Input
Support IPC alarm input
Support IPC alarm output
Triggering
Record , snap, preset , e-mail , etc .
Network
Interface
RJ 45 1000Mbps × 1
Protocol
TCP / IP, IPv4 , IPv6 , UDP, PPPoE , DHCP, DNS , DDNS ,
UPnP, NTP, HTTP, SMTP, HTTPs , 802 . 1x , RTSP, RTP,
RTCP, FTP, WebSocket , SNMP, IGMP, ONVIF
Incoming / Outgoing Bandwidth
160/160 (Mbps)
*When the AI function of the IPC is enabled , the actual
incoming bandwidth(max .bitrate) is more than the set
value in the NVR.
Client Connection
Max . 64 users access
Face
Face Detection
Performance (AI by IPC)
