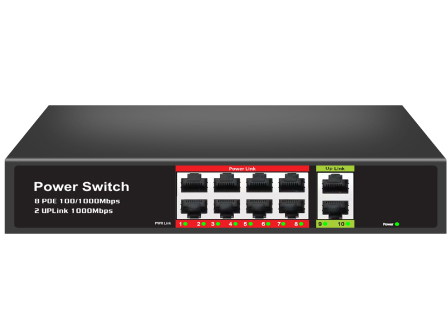

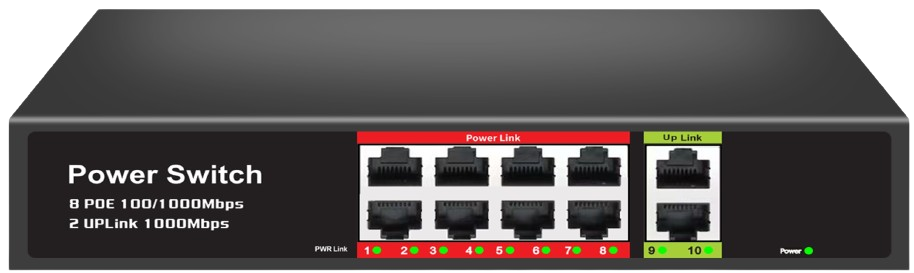

8 Port 10/100/1000 Mbps with PoE + 2 Gigabit Uplink/NVR Port Ethernet Switch
The CPV-SW8G-2 switch simplifies PoE network expansion. Equipped with eight PoE ports (IEEE 802.3af), it delivers up to 15.4 watts per device, ideal for powering IP cameras or access points. Smart power management automatically detects and prioritizes PoE devices while preventing damage to non-PoE equipment. With a 100-meter reach and no configuration needed, this switch allows you to extend your network to areas lacking power outlets, all while ensuring smooth data transmission with its advanced technology.
Model
CPV-SW8G-2
PoE port
1 to 8 IEEE802.3af support
SFP port
NO support

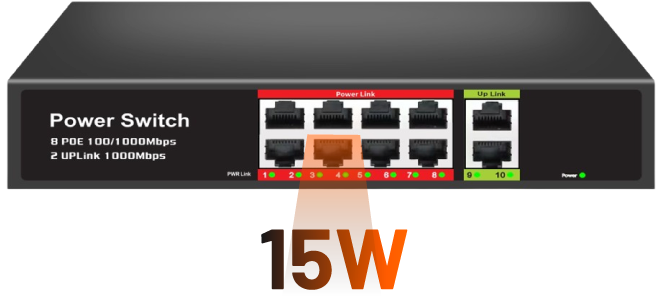

PoE port output power
15 W IEEE802.3 AF
PoE Wire core
1/2+,3/6-

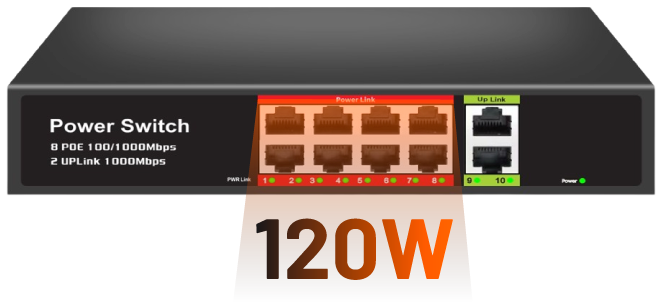

PoE total power
≤120W
PoE Connection Standard
IEEE802.3 AF
PoE type
End Transconnection
Network standards
IEEE 802.3 IEEE 802.3 u, 802.3 x, 802.3a f
Network media
10/100 BASE-TX：5 class and above unshielded twisted pair
Network signal distance
Transmission ≤150 m
Backplane bandwidth
12 Gbps Backplane bandwidth
Forwarding mode
Storage forwarding
Forwarding rate
10/100/1000BASE-T14880PPS/Port
MAC address
2K MAC address list
Indicator
Access to Power Priority Mechanism, Fast and Forwarding, MAC Automatic Learning and Aging
Working environment
-25℃-40℃
Input power
100-240VAC 1A
Power
POE Status indicator lamp power indicator
Weight
1kg ~3 pounds

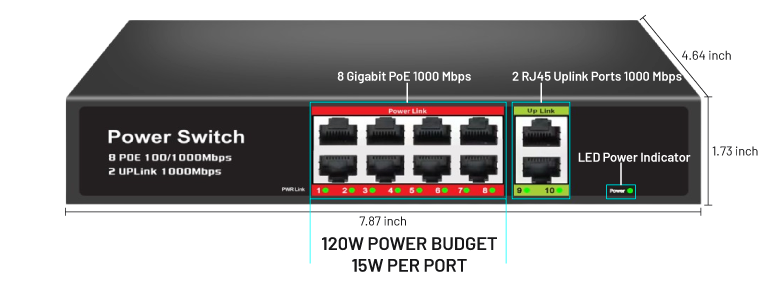

Size
200mm*118mm*44mm(L*W*H)
