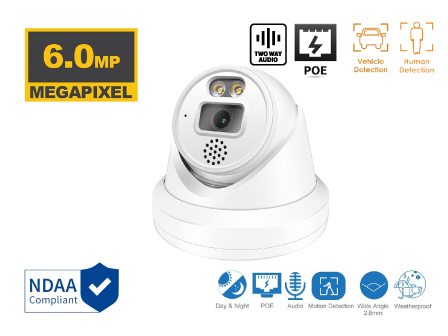

The CPV-SMCFD-6MPSNV is an NDAA Compliant IP network bullet camera that records at 3072 x 2048 video resolution. The CPV-SMCFD-6MPSNV IP Turret dome camera features human and vehicle detection on a Sony CMOS sensor at a 2.8mm Fixed Lens. This camera also has built-in infrared LEDs that enable the camera to see in the dark.
Completely Plug-and-play with Hikvision, Uniview, TVT, LTS, Viewtron, GW Security, ENS Titanium, ENS Emerald, ENS-H, and many more.
Key Features:
• Human and vehicle detection
• Built-in mic and speaker.
• PoE.
• Support MicroSD Card max 256GB.
• Multiply Style OSD Overlay, Motion,Detection, Privacy Mask.
• 1/2.8" Sony CMOS sensor.
• 6MP real-time resolution 3072x2048P.
• Low illumination 0.01 Lux.
• Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT.
• D-WDR, Mirror, rotate, Defogging.
• RTSP and OnVIF 17.06 compatible with many third-party NVR.
• H.264/H.265 dual-stream media server.
• Easy-to-use P2P Cloud Server.
• Support Alarm Snapshot to Email and FTP.
• Multiply WEB Browser IE, Firefox, 32bit ESR, PC client, Mobile APP remote Access.
• RJ45 100mbps network port, IEEE802.3af PoE.
• Lighting protection 4000V.
• Strong water-proof housing IP66.
• 2 pcs SMD Array IR LEDs, IR distance 30 meters.
• HD 2.8mm fixed lens.
IP CAMERAS PROVIDE BETTER VIDEO RESOLUTION THAN HD ANALOG CAMERAS
Product Specifications:
|
Model |
CPV-SMCFD-6MPSNV |
|
Camera |
|
Image Sensor |
1/3.8" Sony CMOS |
|
Effective Pixels |
5 megapixels |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000S |
|
Min. Illumination |
0.01 Lux @ F1.2 (AGC ON), 0 Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto / Manual |
|
BLC/ HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
AGC, Multi-lines, Privacy Mask, Flip, OSD overlay |
|
Encode |
|
Video Standard |
H.264/ H265 |
|
Video Resolution |
Main Stream: 25fps@6MP(3072x2048) / 25fps@5MP(2592x1944), 30fps@1080P / 720P
Sub Stream: 25fps@D1 / VGA / 360P / CIF, etc. |
|
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a |
|
Built-in Mic |
Yes |
|
OSD Overlay |
Title and Time overlay |
|
LED |
|
LED |
2 pcs IR LED |
|
Distance |
30M |
|
Lens |
|
Focal Length |
2.8 mm fixed lens |
|
Function |
|
PoE, audio, Two-way audio, support MicroSD Card max 256GB |
|
Network Services |
|
Protocol |
HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS, etc. |
|
P2P |
Yes |
|
Web |
IE, Firefox (32bit esr), etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
Network Port |
1-RJ45, 100Mbps, PoE |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 8W |
|
Operating Temp. |
-3w0°C (+60)°C, 10% - 90% RH |
