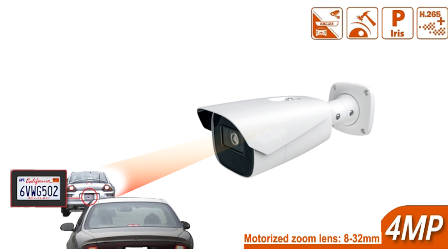

Model |
CPV-SMIRLPRMZ832-4MP |
|
Camera |
|
Image Sensor |
1/1.8" CMOS |
|
Image Size |
2560 x 1520 |
|
Electronic Shutter |
Manual or Auto; Manual 1/1s ~ 1/100000s |
|
Iris Type |
DC Iris |
|
Min. Illumination |
0.0007 lux@F1.3, AGC ON; 0 lux with IR
0.001 lux@F1.6, AGC ON; 0 lux with IR |
|
Lens |
8 ~ 32mm@F1.6, motorized |
|
Field of View |
Horizontal: 41° ~ 15.5°; Vertical: 23° ~ 9.5°; Diagonal: 46.5° ~ 18° |
|
Lens Mount |
Integrated |
|
Recommended ANPR Distance |
7 ~ 30 M |
|
BLC |
Yes |
|
HLC |
Yes |
|
Defog |
Yes |
|
Digital NR |
Yes |
|
S/N Ratio |
Yes |
|
Angle Adjustment |
Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~ 360° |
|
Image |
|
Video Compression |
Main Stream: H.265+ / H.264+ / H.264
Sub Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|
H.264 Compression Standard |
Baseline Profile / Main Profile / High Profile |
|
Resolution |
4MP (2592 ×1520), 2K (2560 ×1440), 3MP (2304 ×1296), 1080P (1920 ×1080), 720P (1280 ×720), D1, CIF |
|
Main Stream |
4MP / 2K / 3MP / 1080P (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps)
HFR Mode: 1080P / 720P (60Hz: 1~ 60fps; 50Hz: 1~ 50fps) |
|
Sub Stream |
720P / D1 / CIF (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) |
|
Third Stream |
D1 / CIF (60Hz: 1 ~ 30fps; 50Hz: 1 ~ 25fps) |
|
Bit Rate |
64Kbps ~ 8 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Audio Compression |
G711A/U |
|
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
|
ROI |
Each ROI is to be configured seperately |
|
Interfaces |
|
Network |
100M RJ45 |
|
Video Output |
CVBS output (BNC x 1) |
|
Audio |
1CH audio input; 1CH audio output |
|
Storage |
Built-in micro-SD card slot; up to 256GB |
|
Reset |
Yes |
|
Alarm |
1 CH alarm input; 1 CH alarm output |
|
RS 485 |
Yes |
|
Wiegand |
Yes |
|
Functions |
|
Remoet Monitoring |
Web Browser/NVMS/NVR/SuperLive Plus mobile APP |
|
Web Browser |
IE11(plug-in required)/Chrome 89 .0+/Edge 89 .0+/Firefox 87 .0+/Safari 14 .0+ |
|
Online Connection |
Support simultaneous monitoring for up to 10 users;
Support multi-stream real-time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802. 1x, UPnP, HTTPs, QoS |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage; micro-SD card storage |
|
Smart Alarm |
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection |
|
Intelligent Analytics |
License plate recognition, vehicle type detection, video exception detection |
|
General Function |
Watermark, video mask, heartbeat, corridor mode |
|
Security |
Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802. 1x authentication, basic and digest authentication for HTTP/HTTPs |
|
PoE |
Yes, IEEE802.3af |
|
IR Distance |
70 ~ 100 M |
|
Protection Grade |
IP67 |
|
LPR Snapshot |
Overview and cutout of plate for picture |
|
Vehicle Plate Database |
10,000 |
|
OSD Information Overlay |
Much information can be overlayed on the captured original image, including snapshot time, location, license plate, plate color, and traffic violation information. |
|
Capture Speed Range |
0 ~ 120 km/h |
|
Others |
|
Power Supply |
DC12V/AC24V/PoE |
|
Power Consumtion |
< 12W |
|
Operating Environment |
-30°C ~ 60°C (-22°F ~ 140°F); Humidity: less than 95% (non-condensing) |
|
Storage Environment |
-30°C ~ 65°C (-22°F ~ 149°F); Humidity: less than 95% (non-condensing) |
|
Dimensions (mm) |
278.3 x 100.2 x 88.7 |
|
Weight (net) |
Approx. 1176KG |
|
Installation |
Ceiling mounting, Wall mounting |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Complies with Directive EU RoHS, WEEE (2012/ 19/EU), directive 94/62/EC and REACH(EC1907/2006) |
