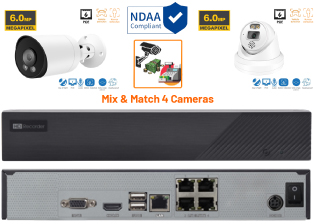

4 PoE channel Network Video Recorder with four 5/6 Mega Pixel IP cameras with built-in microphone
Key Features:
• Support 4 CH 6MP/5MP/4MP/3MP/ 1080P/ 1280×1024/ 960P/720P/960H/ DI/CIF IP video input H .265/H .264
• Support POS information overlay on live view, playback, and search
• Intuitive and user-friendly Graphic User Interface (GUI), Windows-style operation by mouse
• Multi-mode recording: manual / timer/motion/sensor/ POS / AI recording Playback: 4 simultaneous playbacks
• Search: time slice, time, event, tag, smart search
• Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion tripwire video exception, etc.
• Express and flexible backup via USB, network, and so on
• Pentaplex: preview, record, playback, backup, and remote access
• DHCP, DDNS, PoE network protocol
• Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration
• 4 PoE network ports, support IPC direct connection to NVR; support PoE power supply
• Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log view, and device status view
• 1080P output, true high-resolution display
• Support NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smartphones with iOS and Android OS
Product Specifications:
|
Model |
CPV-SNVR4P-5MPK |
|
System |
|
OS |
Embedded Linux |
|
Video |
|
Network Input |
4CH IPC input |
|
Network Input Resolution |
6MP / 5MP / 4MP / 3MP / 1080P / 1280x1024 / 960P / 720P / 960H / D1 / CIF |
|
Output |
HDMI×1: 1920×1080 / 1280×1024/ 1024×768
VGA×1: 1920×1080 / 1280×1024/ 1024×768 |
|
Compression |
H.265s / H.265+ / H.265 / H.264 |
|
Audio |
|
Network Input |
4CH IPC audio input |
|
2-way audio |
No |
|
Local Output |
No (HDMI supports the audio output) |
|
Compression |
G.711(U/A) |
|
Record |
|
Record Stream |
Dual stream recording |
|
Resolution |
6MP / 5MP / 4MP / 3MP / 1080P / 1280x1024 / 960P / 720P / 960H / D1 / CIF |
|
Frame Rate |
6MP @20fps (NTSC/PAL); 5MP or lower @ 30fps/25fps (NTSC/PAL) |
|
Playback |
|
Simultaneous Playback |
Max. 4CH |
|
Search |
Time slice / time / event / tag / smart search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refer to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
|
Decoding Capability |
|
Live view / Playback |
1CH 6MP, 4CH 720P |
|
Alarm |
|
Mode |
Manual, sensor, motion exception, smart events |
|
Input |
Supports PC alarm input |
|
Output |
Supports IPC alarm output |
|
Triggering |
Record, snapshot, buzzer, preset, e-mail, etc. |
|
Network |
|
Interface |
RJ45 100Mbps x 1 |
|
Protocol |
TCP/IP, PoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, 802.1x, RTSP, SNMP, ONVIF, etc. |
|
Incoming Bandwidth |
28 Mbps |
|
Outgoing Bandwidth |
28 Mbps |
|
Client Connection |
Max. 10 users' access |
|
LPR |
|
Plate Recognition |
Yes |
|
Mobile Device |
|
OS |
iOS, Android |
|
Storage |
|
HDD Interface |
SATA2.0x1, max. 8T |
|
Backup |
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
|
Port |
|
USB |
USB 2.0 x 2 |
|
Remote Controller |
Yes |
|
PoE |
|
PoE Ports |
100m RJ45x4 |
|
Standards |
IEEE802.3af |
|
Output Power |
< 40W |
|
Others |
|
Power Supply |
DC 48V / 1.25A |
|
Consumption |
^6W (without HDD) |
|
Dimensions(mm) |
255 x 222 x 42 (W x D x H) |
|
Working Environment |
-10 ~ 50°C, 10% ~ 90% humidity |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
