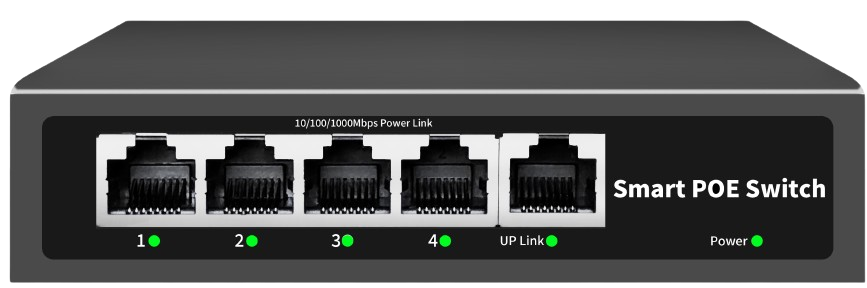

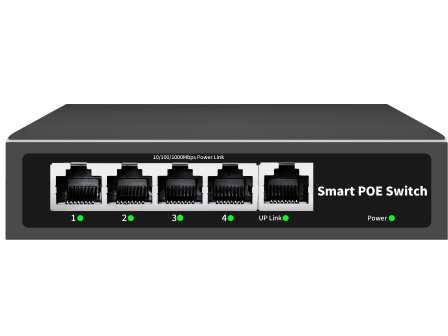

4 Port 10/100/1000 Mbps with PoE + 1 Uplink/NVR Port Gigabit Ethernet Switch
Built to last, without intervention

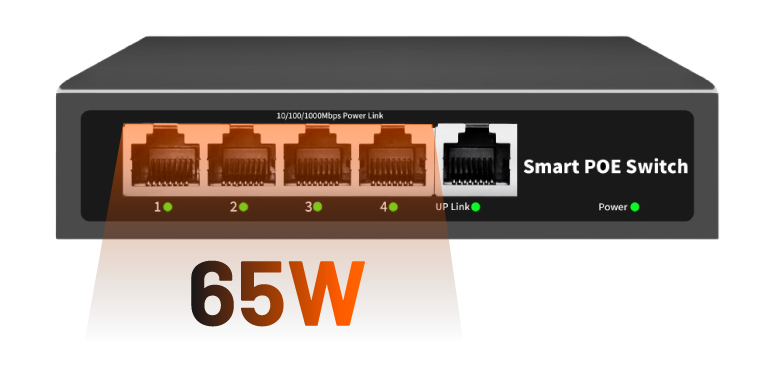

65W total power budget designed for conitinues delivery for camera and other PoE systems

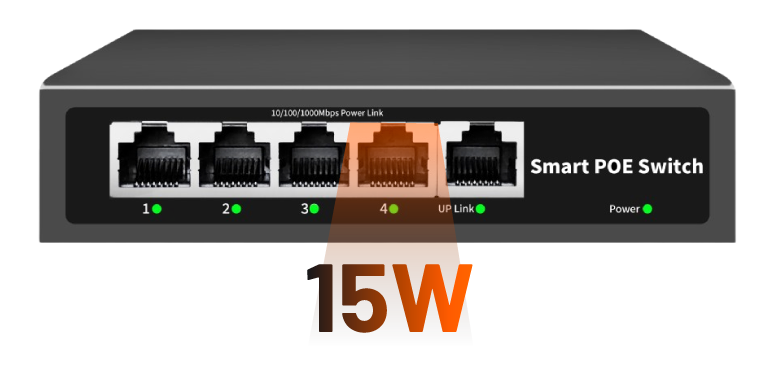

Upto 15W Power Output per Port
Unmanaged PoE Switches are Plug and Play, No configuration needed
Optimized for continues high bandwidth transmission from 4K cameras
The CPVS-W4G-2 switch is an unmanaged powerhouse designed to deliver data and power over existing Ethernet cables, reducing equipment and installation costs. Equipped with the latest high-speed Ethernet switching chip for ultra-fast data processing, it boasts four Gigabit PoE ports that provide 15.4 watts per port, ideal for high-power devices like access points and VoIP systems. Smart power management with priority mechanism ensures efficient power allocation. With five RJ45 ports (four PoE and one upper port) that support auto-negotiation, MDI/MDIX flip, and full/half duplex flow control, it offers excellent port performance and a total switching capacity of 10 Gbps to minimize data congestion. The plug-and-play design requires no configuration for easy management, and the sturdy metal case ensures long-lasting durability. Additionally, the switch automatically reduces power consumption when not in use for energy efficiency, and LED indicators provide real-time device status for efficient troubleshooting. Ideal for various applications in finance, government, hospitality, education, healthcare, and small and medium-sized businesses, the CPVSW4G-2 switch empowers you to create a cost-effective and high-performing network environment.
Features
-
IEEE 802.3af Power over Ethernet PoE compliant
-
Supports 10/100/1000Mbps fast Ethernet
-
4 x10/ 100/1000Mbps Auto-MDIX PoE ports
-
52V 1.25A external power supply
-
Provides up to 15 watts for PoE
-
Automatically detects the PoE class level of a Powered Device
-
12Gbps bandwidth
-
Forwarding rate: 10BASE-T14880PPS/Port
-
Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity
-
Full wire-speed non-blocking reception and transmission
-
Store-and-forward switching method
-
Back pressure Flow Control for Half-Duplex mode
-
IEEE 802.3x Flow Control for Full-Duplex mode
-
Power saving technology powers down unused ports and when a connected device is in standby mode
-
Plug and Play
-
Sturdy rack-mountable metal case
-
Easy installation and use , no need to convert by software and network protocol
|
Model
|
CPV-SW4G-2
|
|
PoE port
|
1 to 4 IEEE802.3af
|
|
SFP port
|
NO
|
|
PoE port output power
|
15W/IEEE802.3 af
|
|
PoE Wire core
|
1/2+,3/6-
|
|
PoE total power
|
≤65W
|
|
PoE Connection Standard
|
IEEE802.3 af
|
|
PoE type
|
End Trans connection
|
|
Network standards
|
IEEE 802.3 IEEE 802.3 u, 802.3 x, 802.3 af
|
|
Network media
|
10/100 BASE-TX：5 class and above unshielded twisted pair
|
|
Network signal distance
|
Transmission ≤100 m
|
|
Backplane bandwidth
|
12 Gbps Backplane bandwidth
|
|
Forwarding mode
|
Storage forwarding
|
|
Forward rate
|
10BASE-T14880PPS/Port
|
|
MAC address
|
100BASE-tx：14800pps/port
|
|
Port function
|
2K MAC address list
|
|
Indicator
|
Access to Power Priority Mechanism, Fast and Forwarding, MAC Automatic Learning and Aging
|
|
Working environment
|
-25℃-40℃
|
|
Input power
|
52V*1.25A/65W
|
|
Power
|
POE Status indicator lamp power indicator
|
|
Weight
|
0.65kg ~1.5 pounds
|
|
Size
|
125mm*115mm*33mm(L*W*H)
|
