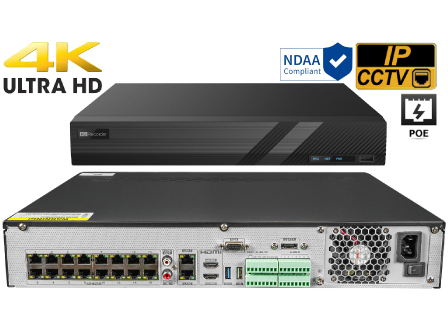

32 Channel 4K 8MP Network Video Recorder built in 16 PoE with Support for POS and VCA

Product ID CPV-SNVR32P-4K2
List Price: $1,075.00
Price: $669.00
POS/Cash Register this device will connect to
POS/Cash Register this device will connect to
POS/Cash Register this device will connect to
Please select if you want this NVR or DVR/HVR with Point-of-Sales Integration, configuration, and support. Please note that any configuration changes on POS may have to be done by the POS vendor and are not included in this support.

This product supports 32 CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P HD IP video input, which adopts the most advanced SOC technique to ensure HD recording in each channel and realize the outstanding robustness of the system. Also CPV-SNVR32P-4K2 integrates with 16 PoE network ports and supports 16 CH IPC direct connection to NVR, simultaneous 16 CH playback, and 4K high-definition display. The series of products can meet different security requirements of home, financial, commerce, enterprise, transportation, government, etc.


Key Features:

• Supports 32 CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/960H/D1/CIF IP video input H.265S / H.265+ / H.265 / H.264 coding
• Intuitive and user-friendly Graphic User Interface (GUI), Windows-style operation by mouse
• Multi-mode recording: manual / timed / motion/sensor / POS / AI recording Playback: 16 CH simultaneous playback
• Search: time slice, time, event, tag search, and smart search. Supports face detection and comparison
• Supports multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
• Supports POS information overlay on live view, playback, and search, Express and flexible backup via USB, network, and so on Pentaplex: preview, record, playback, backup, and remote access DHCP, DDNS, PoE network protocol
• Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration
• 16 PoE network ports; PoE power supply supported
• Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with mobile device Multi-user online simultaneously
• Authorization management, log view, and device status view 4K output, true high-resolution display
• Supports PTZ preset and auto cruise, up to 255 presets, and 8 cruises. Supports NAT function and QRCode scanning by mobile phones. Powerful mobile surveillance by smartphones with iOS and Android OS

Click Here To Watch Tutorial and Demo Videos

Image Resolution Comparison



Configure your NVR to send immediate email notifications upon detecting motion



Access your system remotely from anywhere




Product Specifications:

Model CPV-SNVR32P-4K2
System
Operating system Embedded Linux OS
Video
Network Input 32CH IPC input
Incoming Bandwidth 192Mbps
Outgoing Bandwidth 192Mbps
Network Input Resolution 12MP / 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 1280X1024/ 960P/ 720P/ 960H/ D1/ CIF
Output HDMI1: 3840 X 2160 / 1920 x 1080 / 1280 x 1024 / 1024 x 768
HDMI2: 1920 X 1080 / 1280 X 1024 / 1024 X 768
VGA X 1: 1920 X 1080 / 1280 X 1024 / 1024 X 768
VGA and HDMI1 output the same video source
Compression H.265S/H.265+/H.265/H.264
Multi-screen Display 1/4/6/8/9/13/16/25/32/36, 32CH {(HDMI1) +4CH (HDMI2)}
Audio
Network Input 32 CH IPC audio input
2-way Audio RCA x 1
Local Output RCA x 1
Compression G.711 (U/A)
Record
Record stream Dual stream recording
Resolution 12MP@20fps; 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280x1024 / 960P / 720P / 960H / D1 / CIF@30fps (NTSC)/25fps(PAL)
Mode Manual / timed / motion / sensor / POS / AI recording
ANR Automatic network replenishment (Yes)
Decoding Capability
Live View / Playback 1CH 12MP / 4CH 5MP / 9CH / 720P / 16CH D1
Playback
Simultaneous Playback Max: 16 CH
Search Time slice/ time/ event/ tag/ smart search
Smart Search Highlighted color to display the camera record in a certain period of time, different colors refer to different record events.
Function Play, Pause, FF, FB, digital zoom, etc.
Alarm
Mode manual, sensor, motion, exception, smart events
Input 16 CH local alarm input; Supports IPC alarm input
Output 4 CH
Triggering Record, Snap, Preset, e-mail, etc.
Face
Channel 32CH
Face Picture Database 32 libraries; 5000 Face Picture
Computing Capability 180 pictures/minute
Face Picture Search Search by picture is supported
Database Management Add, modify, delete and search face pictures
Face picture Adding Add face pictures through the APP, WEB, and external import
Face picture Comparison Support allows list, block list, and stranger match alarm
Track Track display on a map
Statistic Gaph of Face Information Bar Graph
Statistic Mode of Face Statistics by day, week, month, and quarter as well as customized time period
Video Sturcture Analysis
Human / Vehicle Classification Yes
Other Functions
Fisheye Supports fisheye dewarping via Web Client and mobile APP
Plate Recognition Yes
PoE
PoE Port RJ45 x 16
Standard IEEE802.3af
Output Power ≤ 150W
Network
Interface RJ45 10 / 100 / 1000 Mbps x 2
Protocol TCP / IP, PoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc.
Client Connection Max. 20 Users' access
Mobile Device
OS iOS, Android
Storage
HDD Interface SATA x 4, max. 10T per HDD
Backup
Local Backup U disk, USB mobile HDD
Network Backup Yes
Port
RS 485 Yes (full-duplex), connect to PTZ or keyboard
USB USB 2.0 x 1, USB 3.0 x 1
Remote Controller Yes
Others
Language 30 languages (English, French, Arabic, Spanish, etc.)
Power Supply ATX 292W
Consumption ≤ 15W (without HDD and PoE power supply)
Dimensions (mm) 440 x 390 x 70 (WxDxH)
Working Environment -10 ~ 50 °C, 10% ~ 90% humidity
Certificate CE, FCC
Environmental Protection Complies with Directive EU RoHS, REACH and WEEE
