Model |

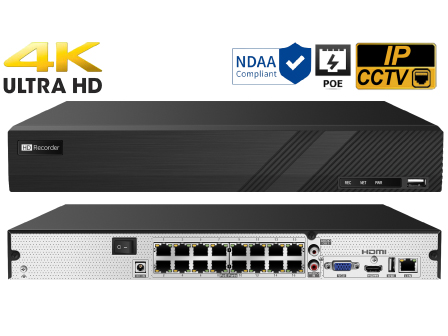

CPV-SNVR16P-4K2 |
|
System |
|
Operating system |
Embedded Linux |
|
Video |
|
Network Input |
16CH IPC input |
|
Network Input Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280X1024/960P/720P/960H/D1/CIF |
|
Output |
HDMI x 1: 3840 x 2160 / 1920 x 1080 / 1280 x 1024/ 1024 x 768 VGA: 1920 x 1080 / 1280 x 1024/ 1024 x 768
HDMI and VGA output the same video source |
|
Compression |
H.265S /H.265+ / H.265 / H.264 |
|
Screen Display Mode |
1/4/6/8/9/13/16 |
|
Audio |
|
Network Input |
16 CH IPC audio input |
|
Local Input |
RCA × 1 (for two-way audio) |
|
Local Output |
RCA x 1 |
|
Compression |
G.711 (U/A) |
|
Record |
|
Record stream |
Dual stream recording |
|
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Frame Rate |
NTSC:30fps; PAL:25fps |
|
Playback |
|
Simultaneous Playback |
Max.16 CH |
|
Search |
Time slice / time / event / tag / smart search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time,
different colors refer to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
|
Decoding Capability |
|
Live View/ Playback |
1×8MP@30fps; 6×1080P@30fps |
|
Alarm |
|
Mode |
Manual, sensor, motion, exception, smart events |
|
Input |
Supports IPC alarm input |
|
Output |
Supports IPC alarm output |
|
Triggering |
Record, Snap, Preset, e-mail, etc. |
|
Network |
|
Interface |
RJ45 × 1(10/100/1000Mbps) |
|
Protocol |
TCP / IP, PoE, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF |
|
Incoming/Ougoing Bandwidth |
160/160 (Mbps)
*When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. |
|
Client Connection |
Max. 64 users access |
|
Face |
|
Face Detection Performance (AI by IPC) |
16 CH |
|
Face Detection Performance (AI by Device) |
2 CH |
|
Face Match Performance |
No |
|
Statistical Graph of Information |
Bar graph |
|
Statistical Mode of Information |
Statistics by day, week, month, quarter as well as customized time period |
|
Video Structure Analysis |
|
Human/Vehicle Classification(AI by IPC) |
16 CH |
|
Human/Vehicle Classification(AI by Device) |
2 CH |
|
Human/Vehicle Attribute Analysis |
Yes (AI by IPC) |
|
LPR |
|
Plate Recognition(AI by IPC) |
Yes |
|
Fisheye |
Supports fisheye dewarping via Web Client and mobile APP |
|
Mobile Device |
|
Operating System |
iOS, Android |
|
Storage |
|
HDD Interface |
SATA 3.0 x 2, max. 10T per HDD |
|
Backup |
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
|
Port |
|
USB |
USB 2.0 x 2 |
|
Remote Controller |
Yes |
|
PoE |
|
PoE Ports |
100Mbps RJ45 x 16 |
|
Standards |
IEEE802.3AF/AT |
|
Output Power |
≤ 150W |
|
Others |
|
Power Supply |
DC 48V/3.75A |
|
Consumption |
≤ 10W (without HDD) |
|
Dimensions (mm) |
380 x 264 x 45 (WxDxH) |
|
Working Environment |
-10 ~ 50 °C, 10% ~ 90% humidity |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
