***EOL 1 month warranty 5 days refund BNC Analog HD 720p or Standard Analog 960H/2000+ TVL

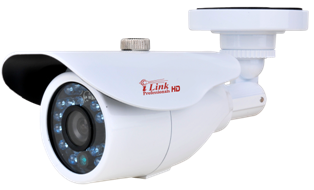

The CPV-HDIRB2-720 is a second generation indoor/outdoor bullet 720P HD CCTV Camera featuring a 3.6mm fixed lens and a high definition 1/4" CMOS image sensor. The CPV-HDIRB2-720 is capable of capturing 720P (1280 x 720) resolution (HD CCTV) video surveillance over RG59 coaxial cable. This camera has 23 infrared LEDs, which allows the camera to capture video in low light and zero light environments at a distance up to 30 feet.
MODEL No.
CPV-HDIRB2-720
VIDEO
Image Device
1/4' HD CMOS
TV System
PAL/NTSC
Total Pixels
1.024M Pixels
Effective Pixels
1280 (H) * 720 (V)
Scanning System
Progressive
Synchronization
Internal
Min. Illumination
0 Lux (LED on)
S/N Ratio
>58db
Video Output
1Vp-p, 75ohm, BNC
OPERATIONAL
Focal Length
3.6MM Fixed Lens
LENS
DC/MANUAL
Shutter
Auto,1/25-30(FLK)
AGC
0-15
SENS-UP
OFF/Auto
Brightness
0-100
D-WDR
ON/OFF
Defog
Backlight
White Bal
ATW/Indoor/Outdoor
Day & Night
EXT/Color/B/W/Auto
IR Smart
Yes
2DNR/3DNR
Cam Title
D-Effect
Freeze/Mirror
Motion
4 area
Privacy
Language
ENG/CHN1/CHN2/GER
/FRA/ITA/SPA/POL/RUS
/POR/NED/TUR
Defect
Live DPC/White DPC/Black DPC
Infrared LED
23 EA
IR Distance
10 ~ 20 Meters
IR-CUT
YES
Infrared Spectrum
850nm
Operation Temperature
-10℃~ +60℃
Storage Temperature
-20℃~ +70℃
Water-proof Casing
IP66
Max Power
4.74W
Adapter Requirement
DC12V1A
Color
White
Dimensions
Ф69*177MM
Net Weight
1lb
Transmission Distance
500 Meters (75-3)
(Power supply not included see Accessories) * Regular Stocking Item Download High Resolution PDF *Specification & Illustrations are subject to change without prior notice
